Advantage
Comprehensive crusher is composed of machine base, knife roller, upper and lower feeding mechanism, feeding device and hydraulic buffer system. It is mainly used for crushing building formwork, demolition materials, formwork and other materials.
The wood crusher mainly relies on the impact energy to complete the crushing of wood. Comprehensive hammer crusher is working, the motor drives the rotor high-speed rotation, wood evenly into comprehensive crusher cavity, high-speed rotary hammer impact, shear timber wood is broken, torn and wood's own gravity to make wood from the high-speed rotating hammer head to the body panel, screen, at the bottom of the rotor and sieve plate, crushing wood smaller than the screen mesh size fraction Through the sieve plate, is greater than the screen hole size of wood resistance continues to hit by the hammer on the sieve plate and grinding.
Raw material
Bamboo
Branch
Waste wood board
Wood pallet
Wood
Parameter
| Model | Power(kw) | Feed port size(cm) | After chipping size(mm) | Capacity(t/h) | Weight(t) |
| YMPJ1300-300 | 110+4+5.5+3+1.5 | 1300*300 | 30-100 | 6-10 | 8.5 |
| YMPJ1300-600 | 160+7.5+7.5+3+3 | 1300*600 | 30-100 | 12-15 | 11.5 |
| YMPJ1400 | 220+7.5+7.5++3+3 | 1400*600 | 30-100 | 15-20 | 14 |
| YMPJ1650 | 220+11+7.5+3+4 | 1650*600 | 30-100 | 18-25 | 16 |
Key points
1. Feeding chain plate: all models adopt feeding chain plate, chain plate is Q345 steel plate.
2. The main machine includes: main machine box, upper and lower feeding structure, spindle cutter roller, motor, etc.
3. Wearing parts: flying blade, fixed blade, bearing, triangle belt,etc.
4. The blade material is H13 steel .The hammer head is made of high manganese steel Mn13Cr2 or Mn13, and the surface is surfacing with YG8 carbide particles.
Accessories is introduced
Feed roller chain plate
Harbin bearing
Siemens motor
Wood chipper blade
Wood chipper hammer
Export case

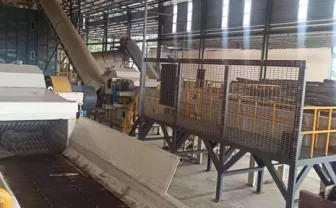

Malaysia 2113 Model 20-25t/h Wood Logs Wood Chipper
Indonesia 2113 Model Board Wood Chipper
Vietnam Mobile Diesel Wood Chipper
Japan 218 Model Wood Logs Wood Chipper
Certification
Our company has gained ISO9001-2000 Certification, CE Certification, SGS Certification patent etc. Products cover the environmental carbon, biomass, urban and rural environment, culture and other fields. There are five main series: the biomass compression molding equipment, garbage disposal equipment for urban and rural, organic fertilizer equipment, Feeder Equipment and Environmental protection equipment.
Service/policy/warranty or after-sales service
Production service/Operation service
If you are short of technical engineers, lack of equipment maintenance experience, or your pellet plant has no profit. We provide technical engineers and full service to help you increase the profit of your pellet plant. We only charge the service fee of each ton pellets production, making you easy to be boss. (The production and operation capacity is at least 5t/h).
Overseas warehouse construction
Malaysia and more overseas warehouse are in construction, solving your after-sales service problems nearly .
Free Raw Material Test
We can do free raw material test for you. You just need to send your raw material to us, and we will find the best way to make pellets with it.
24-Hour online customer service guide by phone or any contact at any time.
48-Hour engineer's door-to-door service Save customers waiting time in maximum to raise their satisfaction
FAQ
1. ¿Cómo te pago?
(1) depósito del 30% del monto total a pagar por T / T en 5 días hábiles después de firmar el contrato de venta, el saldo del 70% se pagará antes de que los productos salgan de la fábrica.
(2) depósito del 30% del monto total a pagar por T/T 5 días hábiles después de firmar el contrato de venta, el saldo del 70% puede pagarse por L/C antes de que la fábrica abandone las mercancías.
(3) Podemos negociar condiciones de pago específicas con nuestro cliente.
2. ¿Cuál es el tiempo de entrega?
Para máquinas estándar, sería de 25 a 30 días hábiles; Para máquinas no estándar y máquinas personalizadas de acuerdo con los requisitos específicos de los clientes, sería alrededor de 30 días hábiles. Trabajamos con el transitario más grande del norte de China. Si necesita designar otras medidas de flete, podemos organizarlas porque tenemos una gran experiencia y fondos suficientes para manejarlas.
3. ¿Qué hay de los documentos después del envío?
Después del envío, DHL le enviará todos los documentos originales, incluido el conocimiento de embarque, la factura comercial, el B/L y otros certificados que requieran los clientes.
